IC Integrated Circuits SN74AVC32T245ZKER BGA-96 Translation - Voltage Levels
Product Description:
This 32-bit noninverting bus transceiver uses two separate, configurable power-supply rails. The SN74AVC32T245 device is optimized to operate with V CCA/V CCB set from 1.4 V to 3.6 V. It is operational with V CCA/V CCB as low as 1.2 V. The A port is designed to track VCCA. VCCA and accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB and accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V voltage nodes. The SN74AVC32T245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable ( OE) input can disable the outputs so the buses are effectively isolated. The SN74AVC32T245 is designed so that the control pins (1DIR, 2DIR, 3DIR, 4DIR, 1 OE, 2 OE, 3 OE, and 4 OE) are supplied by VCCA.
Application:
• HVAC Networks • Security Electronics • Building Automation • Telecommunication Equipment • Motion Control • Industrial Networks
Parameter Table:
| Product Attribute | Attribute Value | | Manufacturer: | Texas Instruments | | Product Category: | Translation - Voltage Levels | | RoHS: | YES | | Series: | SN74AVC32T245 | | Type: | Bus Transceiver | | Mounting Style: | SMD/SMT | | Package / Case: | BGA-Microstar-96 | | Brand: | Texas Instruments | | Low Level Output Current: | 12 mA | | Operating Temperature Range: | - 40 C to + 85 C | | Product Type: | Translation - Voltage Levels | | Factory Pack Quantity: | 1000 | | Subcategory: | Logic ICs | |
FAQ:
No MOQ needed, and if you buy more, will enjoy better prices.
You can ask our staff for apply free samples.
- What payment methods do you support?
We provide: Visa/MasterCard/Wire Transfer/WU/MG/PayPal etc.
- What about the shipment methods?
We provide:DHL/UPS/TNT/Fedex/EMS/Aramex/ePacket etc.
- How will you Guaranteed quality?
Quality Warranty Period:12 Months.
- Are the products tested before shipment?
All products were tested before shipment, and the quality problems were negligible.
- Do you provide BOM services?
Yes, We provide one-stop purchase service, Please send us your Bom List
|
|

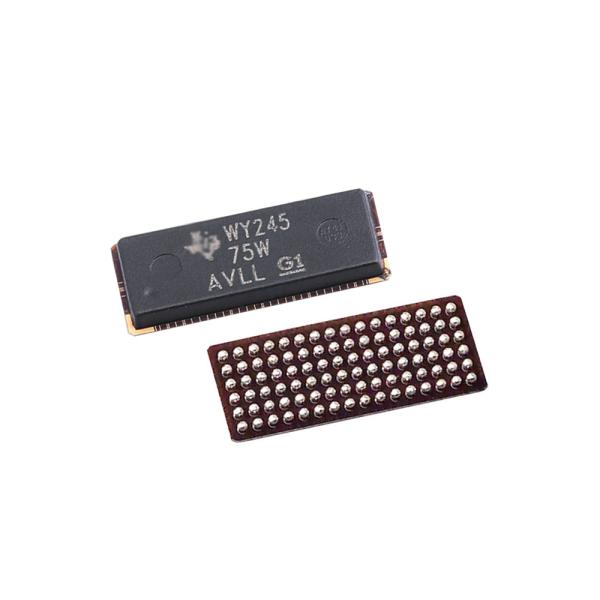

IC Integrated Circuits SN74AVC32T245ZKER BGA-96 Translation - Voltage Levels Images
|
